UUK-4/2-2 4mm Ob Hauv Tow Tawm Pub Los Ntawm Ntsia Hlau Txuas Terminal

Lus piav qhia luv luv:

Cov ntsia hlau-hom kev lag luam davhlau ya nyob twg thaiv muaj qhov sib txuas zoo li qub, muaj peev xwm ua tau zoo, thiab tuaj yeem ntsia tau sai rau ntawm U-shaped qhia rails thiab G-shaped qhia rails. Ntau thiab siv tau accessories. Ib txwm thiab txhim khu kev qha.

Ua haujlwm tam sim no: 32A, Ua Haujlwm Voltage: 500V

AWG: 24-10

Txoj kev txuas: ntsia hlau txuas.

Rated thaiv muaj peev xwm: 4mm²

Installation method: NS 35/7.5, NS 35/15, NS32.

Xa email rau peb

Technical Data

Khoom cim npe

Qhov zoo

Industrial Distribution Terminal Blocks Screw hom
Kaw ntsia liaj qhov rooj ua lub qhov yuav tsis tsuas yog pab txhawb kev lag luam ntawm cov ntsia hlau, tseem tiv thaiv lub ntsia liaj qhov rooj los ntawm kev xa tawm;
Kev faib hluav taws xob muaj peev xwm yog pom tau los ntawm kev txuas lub hauv paus adapter mus rau qhov chaw ntawm lub davhlau ya nyob twg lossis ntxig ib sab adapter rau lub khob hliav qab;

General auxiliaries, xws li phaj kawg, ntu spacer, thiab spacer, txuas rau lub davhlau ya nyob twg nrog ntau ntu;
Lub plhaub insulating yog tsim los yog imported engineering yas polyamides (Nylon) 66, uas yog cov neeg kho tshuab siab, zoo hluav taws xob conductivity, thiab super yooj;

Ob qhov kawg ntawm sab saum toj nrog cov cim dawb kom paub txog cov cim kos npe.
•500 V
•Kev ua haujlwm zoo
•Kev ua haujlwm ruaj khov
•Yooj yim rau nruab
•Segment xeem davhlau ya nyob twg tshiab qauv
•Cov khoom siv nplua nuj kom tau raws li qhov xav tau ntawm ntau lub sijhawm

PRODUCT DETAIL DATA

Cov khoom siv	UK-4/2-2--GY	UK-4/2-2--PE

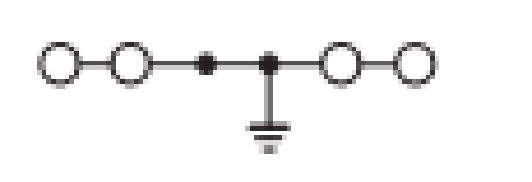

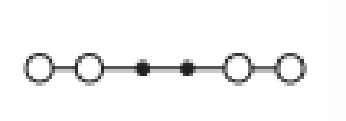

Kab kos duab
Kev faib khoom	Ncaj-los ntawm lub davhlau ya nyob twg thaiv, Ob-hauv Ob-tawm	Hauv av davhlau ya nyob twg thaiv & Ob-hauv ob-tawm
Yam khoom	Ntsia Hlau Hom Terminal Block	Ntsia Hlau Hom Terminal Block
Khoom Series	UUK	UUK
Txuas tus lej	4	4
Kev lag luam	Kev lag luam fais fab Factory engineering txheej txheem tswj Mechanical Engineering Railway kev lag luam	Kev lag luam fais fab Factory engineering txheej txheem tswj Mechanical Engineering Railway kev lag luam
Muaj peev xwm	1	1

Cov ntaub ntawv txuas	UK-4/2-2--GY	UK-4/2-2--PE
Sawb Ntev	9	9
AWG	24 ~ 10	24 ~ 10
Rigid conductor hla ntu	0.2 mm² - 6 mm²	0.2 mm² - 6 mm²
Flexible conductor cross section	0.2 mm² - 6 mm²	0.2 mm² - 6 mm²
Yam tsawg kawg nkaus muaj peev xwm ntawm ib lub xaim	0.2	0.2
Muaj peev xwm xaim ntau tshaj plaws ntawm ib txoj hlua hlau	6	6
Yam tsawg kawg nkaus muaj peev xwm ntawm ntau cov hlua hlau	0.2	0.2
Muaj peev xwm xaim ntau tshaj plaws ntawm cov xov hlau ntau	6	6
Cov kab lus nkag los	Sab Cable nkag	Sab Cable nkag
Dav (mm)	6.2	6.2
Qhov siab (mm)	65.4 ib	65.4 ib
Qhov tob (mm)	46.9 ua	46.9 ua
NWS 35/7.5	47.5 ib	47.5 ib
NWS 35/15	55	55

IEC Parameters	UK-4/2-2--GY	UK-4/2-2--PE
Rated impulse withstand voltage	6kv ua	6kv ua
Rated voltage	500
Rated tam sim no	32

UL Parameters	UK-4/2-2--GY	UK-4/2-2--PE
Rated voltage
Rated tam sim no

Khoom specifications	UK-4/2-2--GY	UK-4/2-2--PE
Xim	Grey	Yellow & Ntsuab
Flammability ntsuam xyuas	V0	V0
Cov pa phem	3	3
Cov khoom siv rwb thaiv tsev	I	I
Cov khoom siv rwb thaiv tsev	PAB 66	PAB 66
